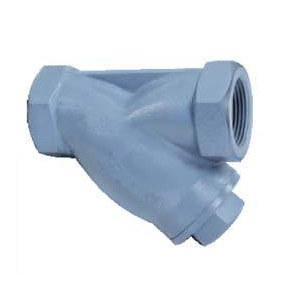

Cast Iron "Y" Type Screwed / Bolted Cover

TECHNICAL DATA

  • Face To Face : As Per Din ND - 40 Type/ ANSI B 16.10.
  • End Connections : Flanged As Per ANSI B 16.5.
  • Shell Wall Thickness : ANSI B 16.34.

BODY IS 210 Gr FG 200/220
SCREEN BRASS/SS 304
MFG STD MARCK / 014
INSP & TEST STD ENDS MARCK / 014
SCREWED TO BSP / BSPT / NPT
FLANGED TO ANSI B 16.1 FF (125 #)
HYD-TEST PRESSURE BODY :213 Psig (15 kg/Cm2)
SIZE RANGE 15 MM TO 300 MM
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
