Flush Bottom Valve

TECHNICAL DATA

  • End Connections : ANSI B 16.5.

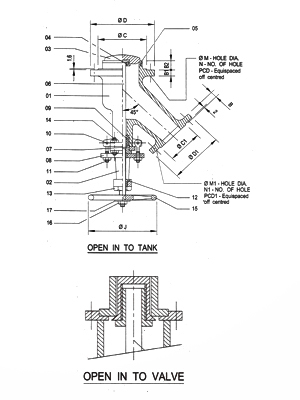

Flush Bottom Valve
NO. DESCRIPTION MATERIAL QTY.
01 BODY AISI 304/ AISI 316/ C.S. 1
02 YOKE AISI 304/ AISI 316/ C.S. 1
03 PLUG AISI 304/ AISI 316/ 1
13% CR. S.S.
04 PLUG NUT AISI 304/ AISI 316/ 1
AISI 410
05 SEAT RING AISI 304/ AISI 316/ 1
13% CR. S.S.
06 STEM AISI 304/ AISI 316/ 1
AISI 410
07 GLAND BUSH AISI 304/ AISI 316/ 1
AISI 410
08 GLAND FLANGE AISI 304/ AISI 316/ 1
AISI 410
09 GLAND PACKING ASBESTOS 1
10 CROSS BOLT & NUT ASTM A 193 GR. B7 2
ASTM A 194 GR. 2H
11 EYE BOLT & NUT ASTM A 193 GR. B7 2
ASTM A 194 GR. 2H
12 YOKE NUT NI. RESIST 1
13 LOCK NUT AISI 304/ AISI 316/ 1
AISI 410
14 YOKE BOLT ASTM A 193 GR. B7 1
15 HAND WHEEL MALLEABLE IRON 1
16 HAND WHEEL NUT AISI 304/ AISI 316/ 1
AISI 410
17 WASHER AISI 304/ AISI 316/ 1
AISI 410

DIMENSION

SIZE B B1 B2 ∅C ∅D ∅C1 ∅D1 ∅M N PCD ∅M1 N1 PCD1 ∅J
IN M.IM
3/4"/1" 20/25 11 12 35 51 108 43 98.4 16 4 79.2 16 4 70.0 125
1"/1.1/2" 25/40 12 14 35 73 127 51 108.0 16 4 98.5 16 4 79.2 150
1.1/2"/2" 40/50 14 16 35 92 152 73 127.0 19 4 120.5 16 4 98.5 200
2"/3" 50/80 16 19 35 127 191 92 152.4 19 4 152.4 19 4 120.5 240
3"/4" 80/100 19 24 35 157 229 127 190.5 19 8 190.5 19 4 152.4 250
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
