Ball Valve-Single Piece Screwed End

TECHNICAL DATA

  • Design & Manufacturing STD. : BS 5351, API 602, IS:9890.
  • Testing & Inspection STD. : API 598.
  • Face To Face : As Per ANSI B 16.10.
  • End Connections : Screwed : (BSP, BSPT, NPT)
Ball Valve-Single Piece Screwed End
Ball Valve-Single Piece Screwed End

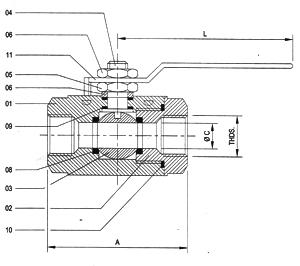

NO. DESCRIPTION MATERIAL QTY.
01 BODY C.I. / C.S / S.S.304/ S.S. 316 1
02 BODY CONNECTOR C.I. / C.S / S.S.304/ S.S. 316 1
03 BALL AISI 304 / AISI 316 1
04 STEM AISI 304/ AISI 316 1
05 GLAND NUT AISI 304/ AISI 316 1
06 GLAND BUSH AISI 304/ AISI 316 1
07 LOCK NUT AISI 304/ AISI 316 1
08 SEAT RING PTFE 2
09 STEM SEAL PTFE 2
10 BODY SEALENT RING PTFE 1
11 WRENCH M.S. / S.S. 1
PRIMARY SERVICE RATING & TEST PRESSURE
CLASS WORKING PRESS. TEMP. HYD. TEST PRESS.
  BODY SEAT
150 150 PSIG 200°F 500 PSIG 230 PSIG
AIR TEST - SEAT 80 PSIG ±10 PSIG

DIMENSION

NO. DESCRIPTION MATERIAL QTY.
01 BODY C.I / C.S. / S.S. 304 / S.S. 316 1
02 BODY CONNECTOR C.I / C.S. / S.S. 304 / S.S. 316 1
03 BALL AISI 304 / AISI 316 1
04 STEM AISI 304 / AISI 316 1
05 GLAND NUT AISI 304 / AISI 316 1
06 GLAND BUSH AISI 304 / AISI 316 1
07 LOCK NUT AISI 304 / AISI 316 1
08 SEAT RING PTFE 2
09 STEM SEAL PTFE 2
10 BODY SEALENT RING 1
11 WRENCH M.S / S.S 1
SIZE A C L THDS.
BSP / BSPT / NPT
IN M.M
1.2" 15 72 12 125 1/2"
3/4" 20 77 18 125 3/4"
1" 25 87 25 125 3/4"
1.1/4" 32 101 32 175 1.1/4"
1.1/2" 40 117 38 175 1.1/2"
2" 50 127 50 175 2"
2.1/2" 65 151 63 252 2.1/2"
3" 80 171 75 252 3"
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
