Steam Trap-Themodynamica

TECHNICAL DATA

  • Screw End : ANSI B 1.20.1.
  • Socket Weld End : ANSI B 16.11.

Steam Trap-Themodynamica
Steam Trap-Themodynamica

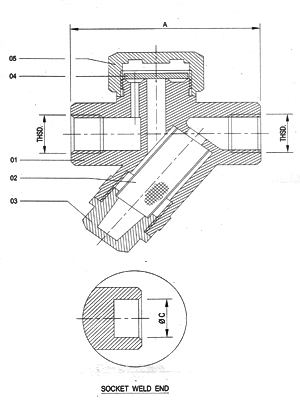

NO. DESCRIPTION MATERIAL QTY.
01 BODY BRONZE/ S.S. CF8/ CF8M/ CA 40 1
02 SCREEN S.S. 304 (20/40 MESH) 1
03 PLUG S.S. CF8/ CF8M/ CA 40 1
04 DISC S.S. CF8/ CF8M/ CA 40 1
05 BODY COVER S.S. CF8/ CF8M/ CA 40 1

DIMENSION

SIZE A THDS. ∅C
IN M.M
1/2" 15 76 1/2" BSP / BSPT / NPT 22.0
3/4" 20 76 3/4" BSP / BSPT / NPT 27.5
1" 25 90 1" BSP / BSPT / NPT 34.0
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
