Dual Plate Type Check Valve
TECHNICAL DATA
- Manufacturing STD. : API 594.
- Tsting & Inspection STD. : API 598.
- Face To Face : API 594.
|
| 01 |
BODY |
C.I. - IS: 210 GR. FG 200/ |
1 |
| ASTM A 216 GR. WCB |
| 02 |
DISC |
A 351 GR. CF8 / G.M. |
2 |
| 03 |
HINGE PIN |
AISI 304 / AISI 316 |
1 |
| 04 |
PLUG |
AISI 304/ AISI 316 |
2 |
| 05 |
STOP PIN |
AISI 304/ AISI 316 |
1 |
| 06 |
SPRING |
AISI 304/ AISI 316 |
2 |
| 07 |
BEARING |
AISI 304/ AISI 316 |
1 |

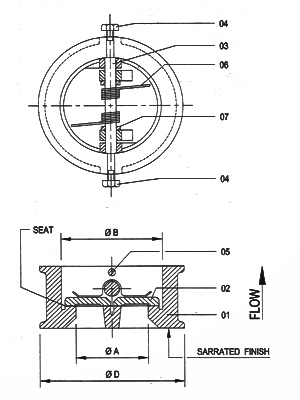

DIMENSION
|
|
|
|
|
|
| 2" |
50 |
50 |
60 |
105 |
| 2.1/2" |
65 |
65 |
75 |
124 |
| 3" |
80 |
76 |
90 |
134 |
| 4" |
100 |
100 |
115 |
172 |
| 5" |
125 |
125 |
135 |
196 |
| 6" |
150 |
150 |
165 |
220 |
| 8" |
200 |
200 |
220 |
276 |
| 10" |
250 |
250 |
265 |
338 |
| 12" |
300 |
300 |
320 |
407 |
| 14" |
350 |
350 |
350 |
448 |
| 16" |
400 |
400 |
400 |
514 |
| 18" |
450 |
450 |
450 |
549 |
| 20" |
500 |
500 |
500 |
603 |
| 24" |
600 |
600 |
600 |
718 |
|
