Ball Valve-Three Piece Screwed End

TECHNICAL DATA

  • Design & Manufacturing STD. : BS 5351, API 602, IS:9890.
  • Testing & Inspection STD. : API 598.
  • Face To Face : As Per ANSI B 16.10.
  • End Connections : Screwed : (BSP, BSPT, NPT)
Ball Valve-Three Piece Screwed End
Ball Valve-Three Piece Screwed End

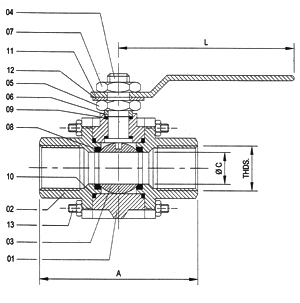

NO. DESCRIPTION MATERIAL QTY.
01 BODY C.I. / C.S / S.S.304/ S.S. 316/ ASTM A 105 1
02 BODY CONNECTOR C.I. / C.S / S.S.304/ S.S. 316/ ASTM A 105 1
03 BALL AISI 304 / AISI 316 1
04 STEM AISI 304/ AISI 316 1
05 GLAND NUT AISI 304/ AISI 316 1
06 GLAND BUSH AISI 304/ AISI 316 1
07 LOCK NUT AISI 304/ AISI 316 1
08 SEAT RING PTFE 2
09 STEM SEAL PTFE 2
10 BODY SEALENT RING PTFE 2
11 WRENCH M.S. / S.S. 1
12 STOP M.S. 1
13 STUD & NUT C.S. / S.S. 4
PRIMARY SERVICE RATING & TEST PRESSURE
CLASS WORKING PRESS. TEMP. HYD. TEST PRESS.
  BODY SEAT
150 150 PSIG 200°F 425 PSIG 300 PSIG
300 300 PSIG 200°F 1100 PSIG 800 PSIG
800 800 PSIG 200°F 3000 PSIG 2000 PSIG
AIR TEST - SEAT 80 PSIG ±10 PSIG

DIMENSION

NO. DESCRIPTION MATERIAL QTY.
01 BODY C.I / C.S. / S.S. 304 / S.S. 316 / ASTN A 105 1
02 BODY CONNECTOR 1
03 BALL AISI 304 / AISI 316 1
04 STEM AISI 304 / AISI 316 1
05 GLAND NUT AISI 304 / AISI 316 1
06 GLAND BUSH AISI 304 / AISI 316 1
07 LOCK NUT AISI 304 / AISI 316 1
08 SEAT RING PTFE 2
09 STEM SEAL PTFE 2
10 BODY SEALENT RING PTFE 2
11 WRENCH M.S / S.S 1
12 STOP M.S. 1
13 STYD & NUT C.S. / S.S 4
CLASS - 150
SIZE A ∅C L THDS.BSP / F G H
IN M.M BSPT / NPT
1.2" 15 90 13 155 1/2" 21.8 29 12.7
3/4" 20 95 19 160 3/4" 27.3 35 19.0
1" 25 100 25 160 1" 34.1 43 22.0
1.1/4" 32 110 32 160 1.1/4" 43.0 54 22.0
1.1/2" 40 120 38 178 1.1/2" 49.0 58 22.0
2" 50 130 50 178 2" 61.3 71 23.0
CLASS - 800
SIZE A ∅C L THDS.BSP / F G H
IN M.M BSPT / NPT
1.2" 15 68 12 115 1/2" 21.8 29 12.7
3/4" 20 79 16 122 3/4" 27.3 35 19.0
1" 25 95 18 153 1" 34.1 43 22.0
1.1/4" 32 107 24 178 1.1/4" 43.0 54 22.0
1.1/2" 40 117 32 178 1.1/2" 49.0 58 22.0
2" 50 130 37 178 2" 61.3 71 23.0

Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
