Pressure Reducing Valve Screwed End

TECHNICAL DATA

  • Manufacturing STD : Prime

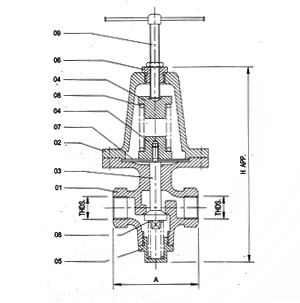

Pressure Reducing Valve Screwed End
Pressure Reducing Valve Screwed End
NO. DESCRIPTION MATERIAL QTY.
01 BODY GUN METAL/ C.I. 1
02 TOP CAP ALUMINIUM 1
03 STEM AISI 410 1
04 SPRING SEAT M.S. 1 SET
05 BOTTOM STOP GUN METAL/ C.I. 1
06 TOP CAP NUT M.S. 1
07 PACKING AISI 410 1 SET
08 SPRING SPRING STEEL 1 SET
09 ADJUST SCREW & NUT BRONZE 2

DIMENSION


SIZE A H THDS.
IN M.M
1/2" 15 78 239 1/2" BSP
3/4" 20 100 266 3/4" BSP
1" 25 107 285 1" BSP
1.1/2" 40 133 334 1.1/2" BSP
2" 50 164 353 2" BSP
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
