Forged Steel Gate Valve

TECHNICAL DATA

  • Manufacturing STD. : API 602.
  • Testing & Inspection STD. : API 598.
  • Socket Weld And Threaded To : ANSI B 16.11/ANSI B 1.20.1.
  • Flanged To : ANSI B 16.5.
  • Flange To Flange Distance : ANSI B 16.10.
Forged Steel Gate Valve

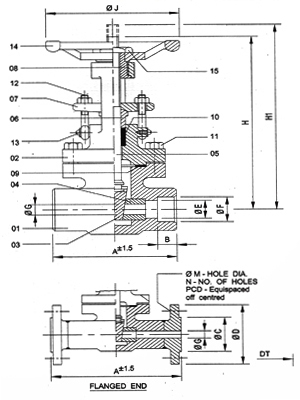

NO. DESCRIPTION MATERIAL QTY.
01 BODY FORGE STEEL A 105 1
02 BONNET FORGE STEEL A 105 1
03 WEDGE AISI 304/ AISI 316/ 1
13% CR. S.S.
04 SEAT RING AISI 304/ AISI 316/ 2
13% CR. S.S.
05 STEM AISI 304/AISI 316/ AISI 410 1
06 GLAND BUSH AISI 304/AISI 316/ AISI 410 1
07 GLAND FLANGE ASTM A 105 1
08 YOKE SLEEVE AL. BRONZE/NI-RESIST 1
09 BONNET GASKET SPIRAL WOUND S.S. 304 1
WITH CAF
10 GLAND PACKING S.S. METAL WIRE BRAIDED -
ASBESTOS
11 BONNET STUD & NUT ASTM A 193 GR. B7 4 SET
ASTM A 194 GR. 2H
12 EYE BOLT & NUT FORGED C.S. 2 SET
13 SCREW & WASHER M.S. GALVANISED 2 SET
14 HAND WHEEL CAST IRON/ C.S. 1
15 HAND WHEEL NUT CARBON STEEL 1

DIMENSION

SIZE SCREWED / SOCKET WELD
IN. M.M A B ∅E ∅F ∅G H H1 DT ∅J
1/2" 15 85 10 13 22.0 9.0 154 174 13 94
3/4" 20 90 12 15 27.5 14.0 160 185 13 94
1" 25 105 13 22 34.0 18.0 168 198 15 98
1.1/2" 40 128 13 36 48.6 32.0 231 274 25 142
2" 50 142 16 45 61.1 42.0 242 287 25 142
SIZE CLASS - 150
IN. M.M A ∅C ∅D ∅G ∅M N PCD
1/2" 15 108 35 89 11 16 4 60.4
3/4" 20 118 43 98 13 16 4 70.0
1" 25 127 51 108 14 16 4 79.0
1.1/2" 40 165 73 127 14 16 4 98.5
2" 50 178 92 152 16 19 4 120.6
SIZE CLASS - 300
IN. M.M A ∅C D ∅G ∅M N PCD
1/2" 15 140 35 95 14.0 16 4 66.5
3/4" 20 152 43 118 16.0 19 4 82.5
1" 25 165 51 124 17.5 19 4 89.0
1.1/2" 40 191 73 155 21.0 19 4 114.0
2" 50 216 92 165 22.0 22 8 127.0

Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
