Lift Type Non Return - Valve Butt Weld End

TECHNICAL DATA

  • Manufacturing STD. : BS1873.
  • Testing & Inspection STD. : API 598.
  • Face To Face : ANSI B 16.10.
  • But Weld Ends : ANSI B 16.25.
  • Shell Wall Thickness : ANSI B 16.34.
Lift Type Non Return - Valve Butt Weld End
Lift Type Non Return - Valve Butt Weld End

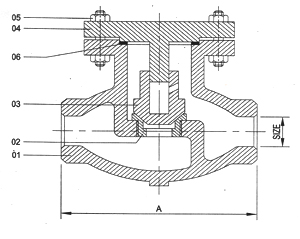

NO. DESCRIPTION MATERIAL QTY.
01 BODY ASTM A 216 GR. WCB/WC6/CF8/CF8M 1
02 SEAT RING S.S. 13% CR. 304/316 1
03 DISC S.S. 13% CR. 304/316 1
04 COVER ASTM A 216 GR. WCB 1
05 COVER STUD & NUT ASTM A 193 GR. B7 -
ASTM A 194 GR. 2H
06 GASKET COMPRESSED ASBESTOS FIBRE 1
SPIRAL WOUND METALIC GASKET
NO DESCRIPTION MATERIAL QTY.
01 BODY ASTM A 216 GR. WCB 1
02 SEAT RING S.S. 13 % CR. 304 / 316 1
03 DISC S.S. 13 % CR. 304 / 316 1
04 COVER ASTM A 216 GR. WCB 1
05 COVERSTUD & NUT ASTM A 193 GR. B7 -
ASTM A 194 GR. 2H
06 GASKET COMPRESSED ASBESTOS FIBRE 1
SPIRAL WOUND METALIC GASKET

DIMENSION

CLASS - 150
SIZE A
IN. M.M
1" 25 127
1.1/2" 40 165
2" 50 203
2.1/2" 65 216
3" 80 241
4" 100 292
5" 125 356
6" 150 406
8" 200 495
10" 250 622
12" 300 698
CLASS - 300
SIZE A
IN. M.M
1" 25 203.0
1.1/2" 40 229.0
2" 50 267.0
2.1/2" 65 292.0
3" 80 317.5
4" 100 356.0
5" 125 400.0
6" 150 444.5
8" 200 559.0
10" 250 622.0
12" 300 711.0
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
