Butterfly Valve Slimseal

TECHNICAL DATA

  • Design & Manufacturing STD : API 609/ IS : 13095.
  • Testing & Inspection STD. : API 598/ IS : 13095.
  • Size Range : 50 To 600 M.M.
  • Pressure Rating : 10 Bar Max (140 PSI)
  • Temp. Tating : Material Will Be Selected According To Service.
Butterfly Valve Slimseal
Butterfly Valve Slimseal

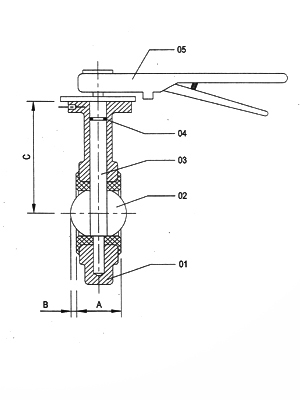

NO. DESCRIPTION MATERIAL QTY.
01 BODY CAST IRON IS:210 GR. FG. 200 MIN./ 1
S.S. 304/S.S. 316
WITH INTEGRALLY MOULDED
02 DISC CAST IRON/ S.S. 304/ S.S. 304/ S.S. 316 1
APPOXY NYLON COATED
03 STEM S.S. 410 1
04 'O' RING NITRILE RUBBER 1
05 LEVER BRACKET S.S. 1
06 LEVER M.S. / CAST IRON 1

DIMENSION


SEAT

NBR -10° C + 120° C
EPDM -20° C + 80° C
HYPALON -20° C + 135° C
VITON -18° C + 150° C
SILIKON -20° C + 180° C
SIZE A B C
IN M.M
2" 50 43 4 99
2.1/2" 65 46 10 110
3" 80 46 16 116
4" 100 52 23 134
5" 125 56 32 164
6" 150 56 45 177
8" 200 60 67 235
10" 250 68 88 259
12" 300 78 106 284
14" 350 92 128 318
16" 400 102 144 384
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
