Wafer Type Check Valve

TECHNICAL DATA

  • Design & Manufacturing STD : API 6D/ ANSI B 16.34.
  • Testing & Inspection STD. : API 598.
  • Pressure Class : DN ND 10, ND 16 & ND 40, ASA 150, 300.
Wafer Type Check Valve
Wafer Type Check Valve

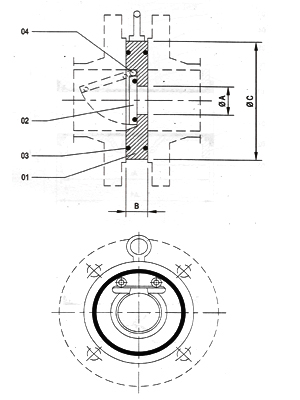

NO. DESCRIPTION MATERIAL QTY.
01 BODY C.I. - IS: 210 GR. FG 200 1
C.S. - ASTM A 216 GR. WCB
S.S. - ASTM A 351 CF8/ CF8M
02 DISC C.I. - IS: 210 GR. FG 200 1
C.S. - ASTM A 216 GR. WCB
S.S. - ASTM A 351 CF8/ CF8M
04 HINGE PIN AISI 304, 316 1

DIMENSION


SIZE IN 2" 2.1/2" 3" 4" 5" 6" 8" 10" 12"
M.M 50 65 80 100 125 150 200 250 300
∅A 30 40 52 71.5 93 114 157 195 240
B 19 19 19 19 19 19 29 29 38
∅C 105 124 137 175 197 222 279 340 410
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
