Forged Steel Globe Valve

TECHNICAL DATA

  • Manufacturing STD. : BS 5352.
  • Testing & Inspection STD. : API 598.
  • Socket Weld And Threaded To : ANSI B 16.11/ANSI B 1.20.1.
  • Flanged To : ANSI B 16.5.
  • Flange To Flange Distance : ANSI B 16.10.
Forged Steel Globe Valve
Forged Steel Globe Valve

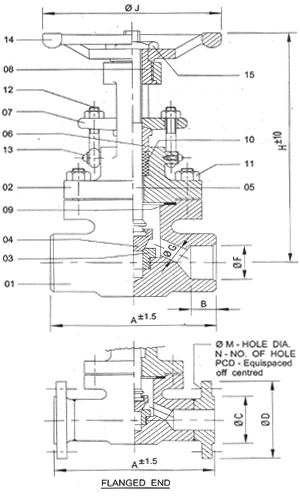

NO. DESCRIPTION MATERIAL QTY.
01 BODY FORGE STEEL A 105 1
02 BONNET FORGE STEEL A 105 1
03 SEAT RING AISI 304/AISI 316/13% CR. S.S. 1
04 DISC AISI 304/AISI 316/13% CR. S.S 1
05 STEM AISI 304/AISI 316/13% CR. S.S 1
06 GLAND BUSH AISI 304/AISI 316/13% CR. S.S 1
07 GLAND FLANGE ASTM A 105 1
08 YOKE SLEEVE AL. BRONZE / NI-RESIST 1
09 BONNET GASKET SPIRAL WOUND S.S. 304 1
WITH CAF
10 GLAND PACKING S.S. METAL WIRE BRAIDED -
ASBESTOS
11 BONNET STUD & NUT ASTM A 193 Gr. B7 4 SET
ASTM A 194 Gr. 2H
12 EYE BOLT & NUT FORGED C.S. 2 SET
13 SCREW & WASHER M.S. GALVANISED 2 SET
14 HAND WHEEL CAST IRON / C.S. 1
15 HAND WHEEL NUT GARBON STEEL 1

DIMENSION

SIZE SCREWED/SOCKET WELD
IN M.M A B E ∅F ∅G H ∅J
1/2" 15 85 10 13 22.0 9.0 150 78
3/4" 20 90 13 13 27.5 12.0 165 78
1" 25 105 13 13 34.0 17.5 185 100
1.1/2" 40 128 13 25 48.5 29.5 239 142
2" 50 142 16 25 61.1 35.0 248 142
SIZE CLASS - 150
IN M.M A ∅C ∅D ∅M N PCD
1/2" 15 108 35 89.0 16 4 60.4
3/4" 20 118 43 98.5 16 4 7.0
1" 25 127 51 108.0 16 4 79.2
1.1/2" 40 165 73 127.0 16 4 98.5
2" 50 203 92 152.0 19 4 120.6
SIZE CLASS - 300
IN M.M A ∅C ∅D ∅M N PCD
1/2" 15 152 35 95.0 16 4 66.5
3/4" 20 178 43 117.0 19 4 82.5
1" 25 20.3 51 124.0 19 4 89.0
1.1/2" 40 229 73 155.5 22 4 114.3
2" 50 267 92 165 19 8 127.0

Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
