Lift Type Non Return - Valve

TECHNICAL DATA

  • Manufacturing STD. : BS1873.
  • Testing & Inspection STD. : API 598.
  • Face To Face : DIN ND - 16/ND - 40.
  • End Connections : DIN 2533/ 2543/ 2535/ 2545/ BS 1560.
  • Shell Wall Thickness : ANSI B 16.34.
Lift Type Non Return - Valve
Lift Type Non Return - Valve

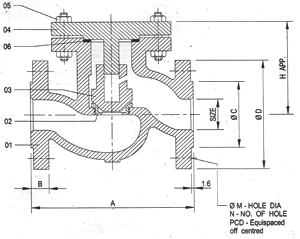

NO. DESCRIPTION MATERIAL QTY.
01 BODY ASTM A 216 GR. WCB/WC6/CF8/CF8M 1
02 SEAT RING AISI 410 1
03 DISC AISI 410 1
04 COVER ASTM A 216 GR. WCB 1
05 COVER STUD & NUT ASTM A 193 GR. B7 -
ASTM A 194 GR. 2H
06 GASKET COMPRESSED ASBESTOS 1
FIBRE
NO DESCRIPTION MATERIAL QTY.
01 BODY ASTM A 216 GR. WCB 1
02 SEAT RING AISI 410 1
03 DISC AISI 410 1
04 COVER ASTM A 216 GR. WCB 1
05 COVERSTUD & NUT ASTM A 193 GR. B7 -
ASTM A 194 GR. 2H
06 GASKET COMPRESSED ASBESTOS 1
FIBRE

DIMENSION

SIZE A B C D H M N PCD
IN M.M
1" 25 160 18 68 115 88 14 4 85
1.1/2" 40 200 20 88 150 105 18 4 110
2" 50 230 20 102 165 118 18 4 125
2.1/2" 65 290 22 122 185 128 18 8 145
3" 80 310 24 138 200 140 18 8 160
4" 100 350 26 162 235 158 22 8 190
5" 125 400 28 188 270 175 26 8 220
6" 150 480 30 218 300 195 26 8 250
8" 200 600 34 285 375 143 30 12 320
10" 250 730 42 345 450 334 33 12 385

Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
