Safety Relief Valve Angle Type

TECHNICAL DATA

  • Testing & Inspection STD. : API 598.
  • Face To Face : ANSI / DIN / BS / IS STD.

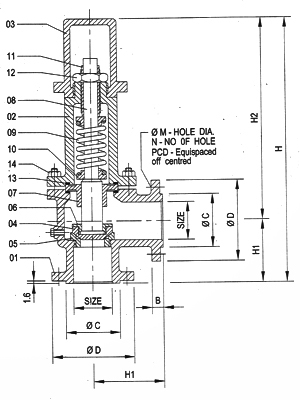

safety-relief-valve-angle-type
Safety Relief Valve Angle Type
NO. DESCRIPTION MATERIAL QTY.
01 BODY ASTM A 216 GR. WCB/WC6/CF8/CF8M 1
02 BONNET ASTM A 216 GR. WCB 1
03 CAP ASTM A 216 GR. WCB 1
04 DISC AISI 304/ AISI 316/ 1
AISI 410
05 SEAT RING AISI 304/ AISI 316/ 1
AISI 410
06 DISC NUT AISI 304/ AISI 316/ 1
AISI 410
07 GUIDE AISI 304/ AISI 316/ 1
AISI 410
08 STEM AISI 410 1
09 SPRING CARBON STEEL/ ALLOY STEEL 1
10 SPRING WASHER AISI 410 2
11 ADJUST BOLT AISI 304/ AISI 316 1
12 ADJUST BOLT NUT AISI 304/ AISI 316 1
13 GASKET SOFT METAL/ CAF -
14 BONNET STUD & NUT ASTM A 193 GR. B7 -
ASTM A 194 GR. 2H

DIMENSION


SIZE CLASS - 150
IN M.M B ∅C ∅D H H1 H2 ∅M PCD N
1" 25 11.0 51 108.0 376 102 274 16 79.2 4
1.1/2" 40 14.2 73 127.0 396 114 282 16 98.5 4
2" 50 15.7 92 152.0 465 133 332 19 120.6 4
3" 80 19.0 127 190.5 572 159 413 19 190.5 8
4" 100 24.0 157 229.0 640 178 462 19 190.5 8
5" 125 24.0 186 254.0 767 200 567 22 215.9 8
6" 150 25.0 216 279.0 932 235 497 22 241.3 8
8" 200 28.5 270 343.0 955 245 710 22 298.4 8
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
