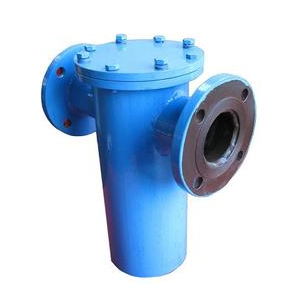

"T" Type (Dirt Box) Bolted Cover

TECHNICAL DATA

  • Face To Face : As Per Din ND - 40 Type/ ANSI B 16.10.
  • End Connections : Flanged As Per ANSI B 16.5.
  • Shell Wall Thickness : ANSI B 16.34.

BODY / COVER IS 210 Gr FG 200 / 220
SCREEN BRASS / SS 304
MFG STD MARCK / 014
TEST STD MARCK / 014
ENDS FLANGED TO BS 10 TABLE "E"
HYD-TEST PRESSURE BODY :213 Psig (15 kg/Cm2)
SIZE RANGE 25 MM TO 350 MM
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
