Pneumatic Rotary Actuator Operated Wafer Type Ball Valve

Size Range : 1" to 3" Wafer Type

ACTUATOR - TECHNICAL SPECIFICATIONS

TYPE : Rack and Pinion Type
ACTUATION : Double Acting / Single Acting (Spring Return)
MOUNTING STD. : ISO 5211 An International Standard
PNUMATIC CONNECTIONS : NAMUR Standard


BALL VALVE - TECHNICAL SPECIFICATIONS

BODY : S.S. 304 / S. S. 316
BALL : S.S. 304 / S. S. 316
STEM PIN : S.S. 304
Gland Packing : PTFE
END CONNECTION : F/ E 150#

ACCESSORIES

  • On / Off Indicator
  • NAMUR Standard Solenoid Valve in all Standard Coil Voltage
  • I/P Transducer (Convertor)
  • Pneumatic valve positioner
  • Electro-Pneumatic valve positioner
  • Declutchable Manual Over - ride
  • Limit Switches for On / Off Indication at Panel board
  • Filter + Regulator Combination with Pressure Gauge
  • Air Lock Valve

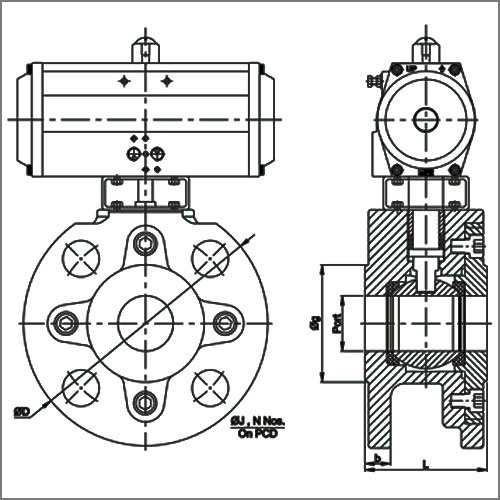

DIMENSIONS :

Valve Model Valve Size Port ∅g ∅J n PCD ∅D b L Weight
MM Inch
RWB - 25 25 1" 24 50.80 15.75 04 79.25 107.9 11.17 54 1.900
RWB - 40 40 1 1/2" 38 73 15.75 04 98.55 127 14.22 63 3.100
RWB -50 50 2" 49 91.95 19.05 04 120.65 152.4 15.75 73 4.900
RWB - 65 65 2 1/2" 64 104.65 19.05 04 139.7 177.8 17.53 96 8.850
RWB - 80 80 3" 75 127 19.05 04 152.4 190.5 19.05 118 10.750
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
