Manual Pneumatic Operated Diaphragm Valve
SPECIFICATIONS :
Hand Operated Valves are Available in Following Configuration
|
Tri-clamp Body To ISO 2852-1933 (e) |
|
Screwed End |
FINISH
| Internal 0.2 to 0.4 Ra. External 0.8 Ra |
| Electro Polished |
| Please Refer To Table Below. |
DESIGN FEATURE
- Hermetically Sealed Flow Path in the Body and Bonnet. Proper Selections of Diaphragm Provide, Precision Control of Critical of Ultra Pure Fluids. Fluids are Completely Isolated From The Actuator and Environment. Hygienic Design, Bi-directional Flow, Body for Low Turbulence. Also for Steam Sterilizing.
Biotechnology, Ideally Suitable For Liquids, Highly Lustrous, Cosmetics Pharmaceutical Industries, Finish and Aesthetical Appearance, Food Industry Liquids Contaminted with Lubricants and Grit Paricles. Viscous Liquids, Process Contro Technology.
Note : Pneumatic Operated PDV also available on request.

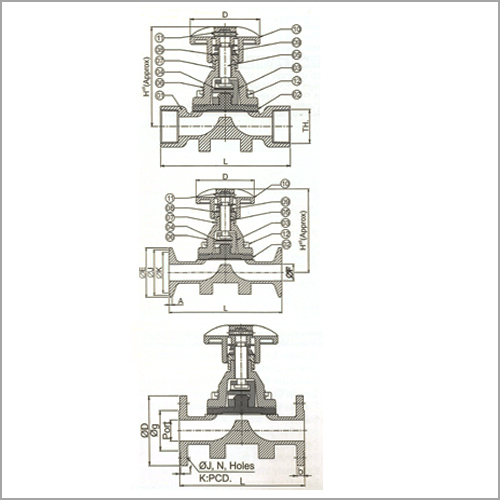

TECHNICAL SPECIFICATIONS
| SR. NO. |
DESCRIPTION |
MATERIAL |
QTY. |
| 01 |
VALVE BODY |
ASTM A 351 CF8/CF 8 M/CF3/ CF3M |
01 |
| 02 |
DIAPHRAGM |
PTFE BACKED NBR BY Temp 155° C |
01 |
| 03 |
COMPRESSOR |
ASTM A 351 CF8 (304) |
01 |
| 04 |
RETAINER |
NYLON |
01 |
| 05 |
STEM |
EN8 + BLACKENING |
01 |
| 06 |
BONNET |
C.I. / S.S. |
01 |
| 07 |
INDICATOR SLEEVE |
P.P. (TELLOW) |
01 |
| 08 |
WASHER |
S.S. 304 |
02 |
| 09 |
TAPPER SPRING |
SPRING STEEL |
01 |
| 10 |
HANDLE WHEEL |
S.S. / PLASTIC |
01 |
| 11 |
DOWEL PIN |
S.S. 304 |
01 |
| 12 |
ELEN BOLT |
C.S. / S.S. |
04 |
