KITZ Butterfly Valve

Size Range : 1 1/2" To 8"

ACTUATOR - TECHNICAL SPECIFICATIONS

TYPE : Rack and Pinion Type
ACTUATION : Double Acting / Single Acting (Spring Return)
MOUNTING STD. : ISO 5211: An International Standard (For Quick & Easy Mounting)
PNUMATIC CONNECTIONS : NAMUR Standard


BUTTERFLY VALVE - TECHNICAL SPECIFICATIONS

BODY : Aluminium
DISC : CF8M
STEM : AISI 410 / AISI 304
SHAFT : AISI 410 / AISI 304
SEAT : EPDM
MGG.STD : BS 5155
INSP.& TEST. STD : BS 6755 / BS 5155
ENDS : Wafer Type to suit ANSI B 16.5 (150#)
VALVE RATING : PN 10
BODY PRESSURE : 225 Psig
SEAT PRESSURE : 165 Psig
TEMPERATURE : 120° C
ITEM TYPE OF TEST TESTING PRESSURE WORKING PRESSURE OPERATING TEMPERATURE (HIGH)
Actuator Pneumatic
Bubble Test		 180 PSIG 45 To 150 PSIG -20° C to 80° C
(High Temp. onrequest)
Valve Body Hydraulic 225 PSIG 150 PSIG Max. 200° C
Seat Hydraulic 150 PSIG 150 PSIG Max. 200° C
Seat Pneumatic 105 PSIG 150 PSIG Max. 200° C

STANDARDS :

Design and manufacturing API 609 category A/BS 5155 MSS
SP-67 / C-504
Valve face to face dimensions Short wafer as per ISO 5752 Tab
5 / API 609 Category A
Top flange drilling ISO 5211 Part II
Inspection and testing API 598 / BS 6755/ FCI - 702
Flanged standard conformity ANSI 150, DIN PN6/ 16

ACCESSORIES :

  • On / Off Indicator
  • NAMUR Standard Solenoid Valve in all Standard Coil Voltage
  • Voltage
  • I/P Transducer (Convertor)
  • Pneumatic Valve Positioner
  • Electro-Pneumatic Valve Positioner
  • Declutchable Manual Over - Ride
  • Limit Switches for On / Off Indication at Panel Board
  • Filter + Regulator Combination with Pressure Gauge
  • Air Lock Valve

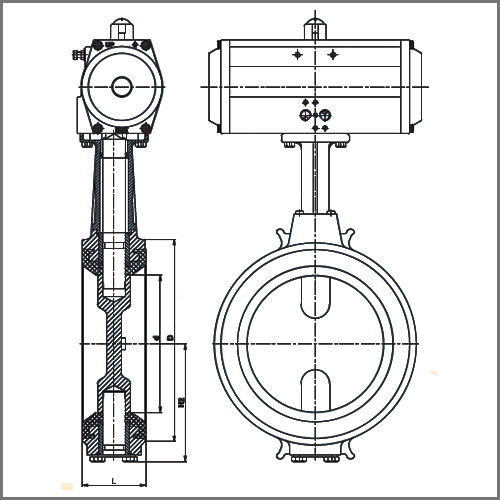

DIMENSIONS :

Valve Model Valve Size d H2 L D C
MM Inch 10K Class 150
KITZ - 40 40 1.1/2" 40 60 33 78 105 -
KITZ - 50 50 2" 50 66 43 93 120 120.5
KITZ - 65 65 2.1/2" 65 74 46 118 140 139.5
KITZ - 80 80 3" 80 83 46 129 150 152.5
KITZ - 100 100 4" 100 94 52 149 175 190.5
KITZ - 125 125 5" 125 122 56 184 210 216
KITZ - 150 150 6" 150 135 56 214 240 241.5
KITZ - 200 200 8" 196 161 60 259 - 298.5
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
