Solenoid Valve (Diaphragm Type)

Size Range : 1/4" To 6" Screwed / Flanged (On Request)

TECHNICAL SPECIFICATIONS

BODY & COVER : ASTM A351 GR. CF8 / CF8M / CF3M
SEALS / DIAPHRAGM : Nitrile / Neoprene (Optional- Silicon, Viton & Other on Request)
PRESSURE RANGE : 0.5 to 10 bar
TEMPERATURE RANGE : -5°C To 85° C (On Request upto 95° C)
COIL VOLTAGE : 12V, 24V, 48V, 110V, 230V, AC/DC
COIL INSULATION : 'F' Class
COIL RATING : Continuous Rated

APPLICATIONS

Textile Processing Machinery, Chemical Plants, Water Treatment,
Sugar Machinery, Cement Machinery, Pumps, lrrigation, Combustion Equipment,
Heat Exchanger, Air Dryer, Pollution Control, Laundry Equipments
and wherever dependable ON/OFF type control is required.

SOLENOID COIL

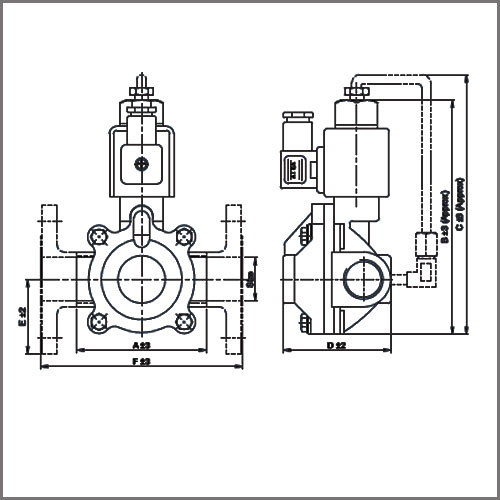

DIMENSIONS :

Valve Model Valve Size Flow Factor
Kv
M3/hr		 A
Screwed 		F
Flanged		 B
(Approx)		 C
(Approx)		 D E Weight (Approx)
MM Inch S/E F/E
RSD - 6 6 1/4" 2.5 65 130 122 170 53 44.5 0.825 1.500
RSD - 10 10 3/8" 2.5 65 130 122 170 53 44.5 0.800 1.450
RSD - 15 15 1/2" 3.5 65 130 122 170 53 44.5 0.760 1.400
RSD - 20 20 3/4" 5.0 80 150 130 180 74 49.5 1.100 1.880
RSD - 25 25 1" 11.0 95 160 148 200 77 54 1.500 2.270
RSD - 32 32 1.1/4" 13.0 121.5 180 159 212 98 58.5 2.340 6.160
RSD - 40 40 1.1/2" 20.0 121.5 200 159 212 98 63.5 2.250 6.160
RSD - 50 50 2" 38.0 140 230 178 225 116 76.5 3.350 6.500
RSD - 65 65 2.1/2" 67.6 172 290 198 230 116 89 4.030 9.350
RSD - 80 80 3" 97.6 196 310 235 260 160 95 5.970 12.200
RSD - 100 100 4" - 302 350 280 318 160 114 13.500 22.850
RSD - 150 150 6" - 344 482.5 - - - - 30.300 50.100

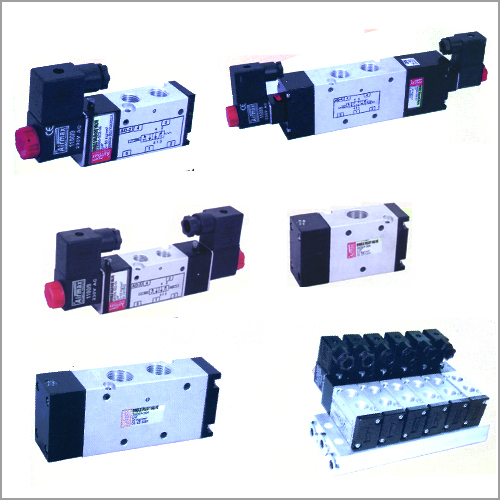

Compact Design Solenoid Valve

Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
