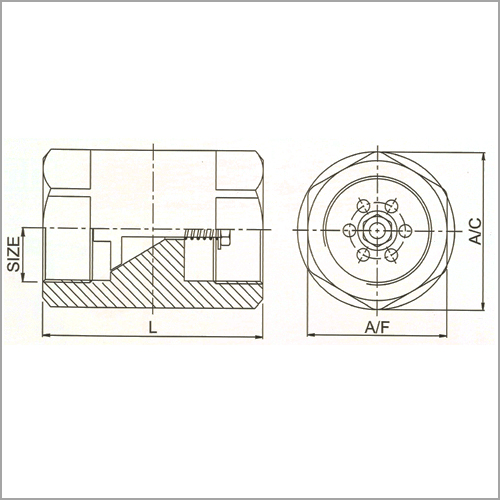

Non Return Valve High Pressure (Universal Design)

Size Range : 1/2" to 2" Screwed [ Female BSP / NPT ]

TECHNICAL SPECIFICATIONS

BODY : CF8 / CF8 M
VALVE PIN : S.S. 304 / S. S. 316
SPRING S.S. 304
'O' RING : VITON
ENDS : SCREWED
SIZE : 1/2" TO 2"
LEAKAGE TEST : BUBBLE TIGHT
PRESSURE : 3000 PSI
TEMPERATURE : 100 °C
MEDIA : AIR, WATER, OIL & GAS
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
