High Performance Butterfly Valve (Pneumatic & Motorized)

Precised & Strong Durable to 240° C / Temperature And 10 Kg/ cm ²/ 20 Kg/ cm ² Pressure

SPECIAL FEATURES

1.	Compact Design - Full Port - Offers Mass Flow
2.	Simple Structure, Light & Smooth - Takes Very Short Time For Opening & Closing Wtih Very Low Torque
3.	Easy Maintenance - Replaceable Seal Design
4.	Self Sealing - Self Cleaning The Under Cut Disc Segment And Seal Tends To Wipe Away The Material From The Sealing Area.
5.	Gland Pressing Plate - Ensures Complete Utilization of Gland Seals

APPLICATION

Hygienic Powder & Slurries,
Pharmaceutical Industries.
Chemical and Dyeing Fluids in Textile Processing
Brine, Water & Oils
Air & Vacuum, Steam & Gas Lines.
**Also available in SS Handle on Request**

MATERIAL OF CONSTRUCTION

Size Range	1.1/2" to 24"
Construction Type	Double Eccentric Disc Design
Body	WCB / CF8/ CF8M
Disc	WCB/ CF8/ CF8M
Seat	PTFE
Shift	AISI 410 / 304 / 316
Plate Mounting	NAMUR Standard
Pressure Rating	ANSI 150 CLASS ANSI 300 CLASS
End Connection	Wafer / Sandwiched
Operating	-25° C to 180° C -25° C to 180° C

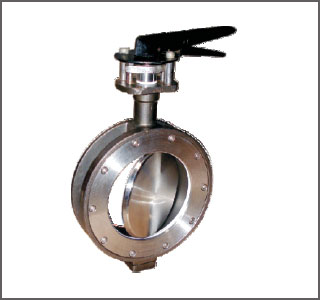

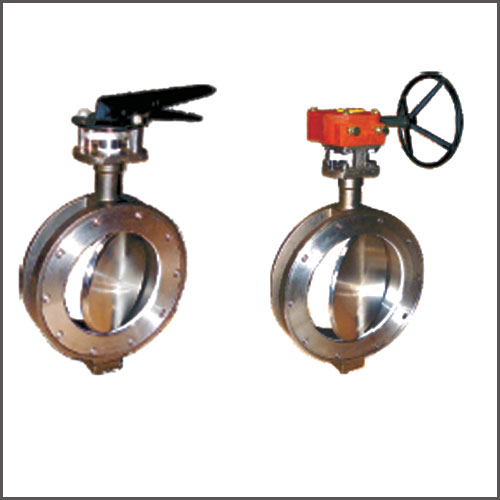

Operating	Hand Lever, Worm Gear Box, Pneumatic Actuated Electrical Actuated

CV VALUE IN GPM

Valve Size CV Full Open 90°(GPM) Class 150

Inch MM

1.1/2" (40) 70

2" (50) 92

2.1/2" (65) 150

3" (80) 260

4" (100) 460

5" (125) 760

6" (150) 1350

8" (200) 2200

10" (250) 3200

12" (300) 4700

14" (350) 5800

16" (400) 8000

18" (450) 10500

20" (500) 14000

24" (600) 21000

TORQUE VALUES IN KGF. M

Valve Size		Differential Pressure(AP)
Inch	MM	5 kg/ cm²	10 kg / cm²	15 kg / cm²	20 kg / cm²
1.1/2"	(40)	0.8	1.0	1.2	1.5
2"	(50)	0.9	1.2	1.5	1.7
2.1/2"	(65)	1.6	2.2	2.4	3.0
3"	(80)	3.0	3.4	4.2	5.0
4"	(100)	4.0	4.6	5.4	6.4
5"	(125)	5.8	8.0	9.5	11.5
6"	(150)	9.0	11.5	12.5	14.5
8"	(200)	14.0	17.5	24.0	28.0
10"	(250)	23.5	26.5	28.0	30.0
12"	(300)	32.0	36.0	10.0	50.0
14"	(350)	50.0	65.0	83.5	108.5
16"	(400)	69.4	94.4	120.0	160.0
18"	(450)	95.5	128.0	157.2	205.0
20"	(500)	122.5	193.3	210.0	293.4
24"	(600)	213.3	293.4	366.7	440.1

STANDARDS	5150 : 40 NB TO 600 NB
Design and Manufacturing	API 609 CATEGORY B
Valve F To F Dimension	API 609 CATEGORY B / ANSI B 16.10
Flange Standard Conformity	ANSI B 16.5 (ASA 150#)
Inspection & Test Standard	API 598 / ANSI FCI 70 - 2
Fire Safe Testing	API 607
Pressure & Temperature Rating	ASME / ANSI B 16.34

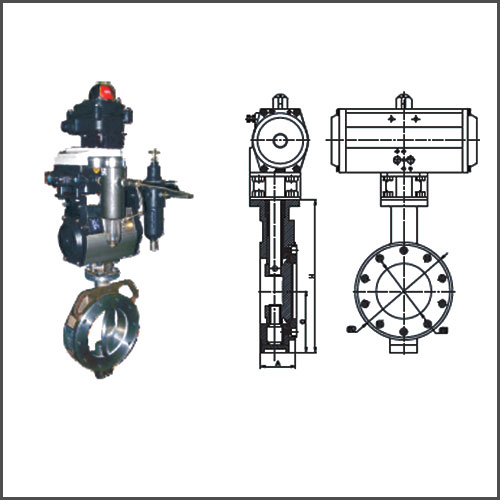

DIMENSIONS :

Valve Size		A	C	H	∅E	∅D	Weight
MM	Inch	A	C	H	∅E	∅D	Weight
40	1 1/2"	42	59.5	114.5	38	82	1.600
50	2"	47	68.5	163.5	50.8	95	2.200
65	2 1/2"	52	74.5	188	60.6	108	3.000
80	3"	52	80	200	72	127	3.800
100	4"	57	95	228	100	159	5.600
125	5"	60	117	268	123	186	7.700
150	6"	60	132	300	143	217	10.400
200	8"	64	157	365	192	270	15.000
250	10"	71	172	369	239	323	25.750
300	12"	81	200	465	290	380	36.000
350	14"	92	224	534	335	406	46.900
400	16"	102	250.5	592	387.5	490	66.850
450	18"	114	355	745	425	540	117.000
500	20"	127	384	805	475	594	146.500
600	24"	154	460	960	560	705	290.000

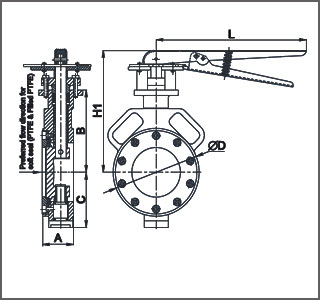

Valve Size		A	B	C	∅ D	H1	L	Weight
MM	Inch	A	B	C	∅ D	H1	L
40	1.1/2"	42	85	59.5	82	146	265	2.250
50	2"	45	95	68.5	95	150	265	2.600
65	2.1/2"	48	113.5	74.5	108	172	265	3.550
80	3"	48	120	80	127	181	265	4.300
100	4"	54	133	95	159	197	265	6.100
100	5"	57	151	117	186	231	265	8.600
150	6"	57	168	132	217	245	265	11.050

SALIENT FEATURES

- High torque capacities
- Adjustable travel stops
- Metalic compact Housing
- Minimum friction

DIMENSIONS

Model No	Torque	Ratio	Valve Size	B	C	D	E	Wheel Dia	Weight
CMG - 20	250 Nm	33 : 1	1.1/2" To 6"	110	78	180	181	200	4.000
CMG - 25	500 Nm	40 : 1	8" To 12"	136	98	140	233	250	5.000
CMG - 30	700 Nm	40 : 1	14" To 16"	180	119	285	318	350	7.000
CMG - 50	1500 Nm	48 : 1	18"	202	140	305	409	500	11.000
CMG - 60	2200 Nm	60 : 1	20"	214	180	320	425	500	14.000
CMG - 70	3500 Nm	73 : 1	24" & 26"	294	240	370	478	600	23.000
CMG - 80	5000 Nm	264 : 1	28" & 30"	294	240	395	568	500	30.000
CMG - 90	7000 Nm	292 : 1	32" & 36"	331	208	381	647	600	48.000
CMG - 100	10000 Nm	300 : 1	40"	413	266	410	716	600	68.000
CMG - 250	22500 Nm	456 : 1	48"	498	337	479	847	600	110.00

Valve Size		CV Full Open 90°(GPM) Class 150
Inch	MM	CV Full Open 90°(GPM) Class 150
1.1/2"	(40)	70
2"	(50)	92
2.1/2"	(65)	150
3"	(80)	260
4"	(100)	460
5"	(125)	760
6"	(150)	1350
8"	(200)	2200
10"	(250)	3200
12"	(300)	4700
14"	(350)	5800
16"	(400)	8000
18"	(450)	10500
20"	(500)	14000
24"	(600)	21000
