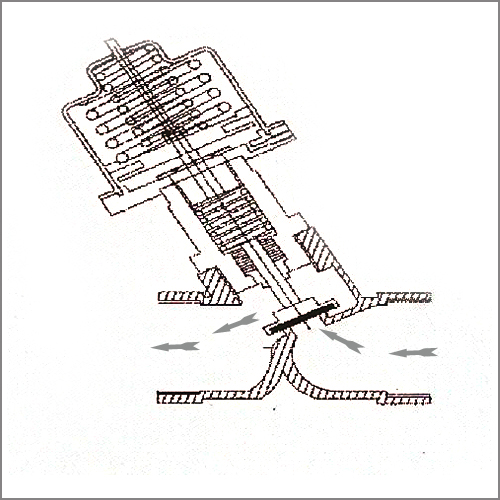

• 2/2 Way Pneumatic Angle Control Valve ('Y' Type) S/E, Model: RV

  • SPECIFICATIONS

MODEL : RV - FRV - (FRS - Extra Long Body)
VALVE DESIGN : 2/2 Way Pneumatic Cylinder Operated Angle Type - Y Type Control Valves
ACTUATOR : Single Acting (Spring Return) N/O, N/C
SIZE RANGE : 1/2" TO 2" (2 1/2", 3", & 4") As per request


  • MATERIAL OF CONSTRUCTION

BODY / BONNET / PLUG : CF 8 (S.S. 304), CF 3 (S.S. 304 L),CF 8 M (S.S. 316), CF 3 M (S.S. 316 L), CAST STEEL (WCB 216)
STEM : S.S. 316, S.S. 304
GLAND SEAL : PTFE V Seals Backed By Graphite Wiper Seal
SEAT : PTFE
ACTUATOR HOUSING : Stainless Steel 304
SPRING : Spring Steel
PRESSURE RATING PN 10 - UP TO 10 Bar
TEMPERATURE RATING : UP TO 180° C
END CONNECTION : Screwed End / flanged Ends Drilled To ANSI 150 #

  • BOLD & BIG

  • Upto 155°C on continuous
    Process & 185°C intermittent
    Process.
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
