Revolve Valves

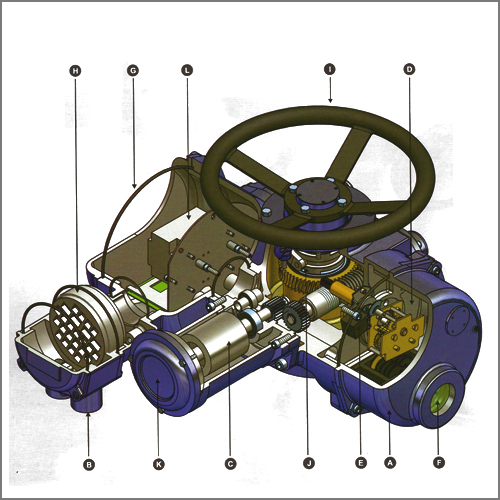

Three Phase Multi Turn

KEY FEATURES

SUPPLY VOLTAGE

415 V AC (± 10%), 50/60 Hz
380 V AC, 460V AC, (Available on request)

ENCLOSURE - IP 67/68

Weatherproof - IS / IEC 60529
Flameproof or Ex-Proof - IS / IEC 60079 | Zone II, Gas Group IIB T4

TORQUE RANGE

50 Nm ~ 24000 Nm

MANUAL OVERRIDE

Advanced design with Auto Declutch Mechanism to prevent user from injury.

INTEGRAL STARTER UNIT

Selector Switches	Open / Stop / Close Auto / Manual or Remote / Local
Indicator Lamps	Open / Stop / Error

VARIOUS OPTIONS

ON / OFF Type.
Modulating Control (Signal Input - 4 ∼ 20mA/1 ∼ 5V DC / 2 ∼ 10V DC).
Potentiometer Feedback (4 ∼ 20mA).
Auxiliary Limit Switches (2 Units).
2 Wire for ON/OFF Operation.

MOTORIZED VALVES

∼Gate Valves
∼ Knife Gate Valves
∼ Globe Control valves

THREE PHASE MULTI TURN MOTORIZED VALVE

Gate Valve
Multi-Turn Electrical Actuator Operated

SIZE :
1" TO 40"
BODY / BONNET :
CI/ WCB/ WC6/ WC9/ SS 304/
SS 316/ SS316L/ ALLOY STEEL / DUPLEX
TRIMS :
13Cr. / 18Cr. 8N / SS
TemP :
-20° C TO 750° C (AS PER REQUIREMENT)
ends :
Flanged to 150# / 300# / 600# / 900# /
1500# / 2500#
DESIGN & MANUFACTURING STD. :
API 600 / BS 1414 / MSS-SP80 / BS 5352

Globe Valve
Multi-Turn Electrical Actuator Operated

SIZE :
1" TO 16"
BODY / BONNET :
CI/ WCB/ WC6/ WC9/ SS 304/
SS 316/ SS316L/ Alloy Steel / Duplex
TRIM / PLUG (equal percentage)
13Cr. / 18Cr. 8N / SS(Stellited on Req.)
seat :
teflon/ metal seated (class iv/class vi)
ends :
Flanged to 150# / 300# / 600# / 900# /
1500# / 2500#
DESIGN & MANUFACTURING STD. :
API 602 / BS 1873 / MSS-SP80 / BS 5352
ends :
Flanged/ lugged to ans 16.5 rf (150#)

Pinch Valve
Multi-Turn Electrical Actuator Operated

SIZE :
1" TO 16"
BODY / BONNET :
ci / wcb/ allumnium / ss 304 / ss 316
TRIMS :
13Cr. / 18Cr. 8N / SS
elastomer sleeve :
natural, nitile, epdm, neoprene, hyplon
media :
abrasiv ecorrosive application, alkaline,
slurries, viscous fluid, sludge
temperature :
upto 180° C
ends :
flanged to din/ ansi/ bs / is

Knife Gate Valve
Multi-Turn Electrical Actuator Operated

SIZE :
1" TO 30"
BODY :
CI/ WCB / SS 304 / SS 316 / ALLOY STEEL
KNIFE PLATE :
CI/ WCB / SS 304 / SS 316 / ALLOY STEEL
SEAT :
NITRILE / SILICON / METAL TO METAL
PACKING :
PTEE / GRAPHITE
ENDS :
DIN PN 10 FLANGED/
LUGGED TO ANS 16.5 RF(150#)
DESIGN & MANUFACTURING STD. :
MSS SP- 81

Slide Gate / Guillotine Damper Valve
Multi-Turn Electrical Actuator Operated

SIZE :
12" TO 108"
MOC :
IS 2062 MS /
SS 400 GALVANISED STEEL
SEAT :
NITRILE(NBR) / EPDM / VITON
LEAKAGE :
UPTO 99% SEALING EFFICIENCY
CLASS II / III/ IV/ (AS PER FCI 70-2)
TEMPERATURE :
-20° C TO 750° C (AS PER REQUIREMENT)
ENDS :
WAFER / DOUBLE FLANGED DIN 24154
PN 6/ PN 10/ PN 16

Butterfly Valve With
Multi-Turn Electrical Actuator(Worm Gear Box) Operated

SIZE :
24" TO 72"
MOC :
CI/ WCB/ SS 304 / SS 316/
SS 316L / ALLOY STEEL / DUPLEX
SEAT :
NITRILE(NBR) / EPDM / VITON / PTEE
ends :
WAFER / DOUBLE FLANGED / LUG TYPE
RATING :
PN 6/ PN10/ PN16/ PN20/ PN 25
DESIGN & MANUFACTURING STD. :
API 609 /CATEGORY A/ BS 5155 / MSS SP-67 / AWWA C-504
