KEY FEATURES
| SUPPLY VOLTAGE |
220 V AC (± 10%), 50/60 Hz
110 V AC, 24V DC,12V DC (Available on request)
|
| ENCLOSURE - IP 67 |
Weatherproof - IS / IEC 60529
|
| TORQUE RANGE |
150 Kgf to 3500 Kgf
|
| MANUAL OVERRIDE |
Advanced design with Auto Declutch Mechanism to prevent user from injury.
|
| VARIOUS OPTIONS |
ON / OFF Type.
Modulating Control (Signal Input - 4 ∼ 20mA/1 ∼ 5V DC / 2 ∼ 10V DC).
Potentiometer Feedback (4 ∼ 20mA).
Auxiliary Limit Switches (2 Units).
2 Wire for ON/OFF Operation. |
MOTORIZED VALVES
∼2 Way Globe Control Valves
∼3 Way Globe Control Valves
∼ 2/3 Way Globe Control Valves for
High Temp. (Thermic Fluid/ Steam) Application

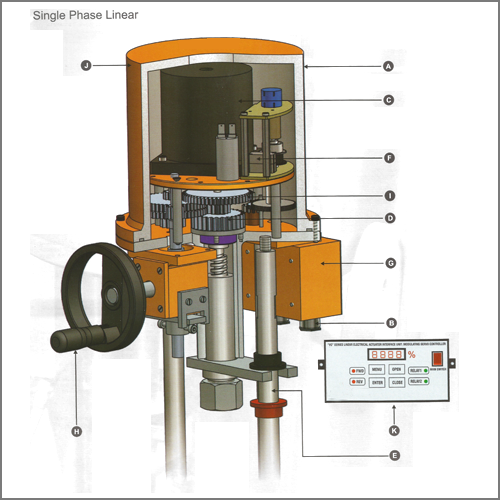

SINGLE PHASE LINEAR MOTORIZED VALVE
 |
Control Value (upto 220° C)
Electrical Actuator Operated
|
SIZE :
1/2" TO 4"
Type:
2 Way / 3 Way
moc :
CI/ WCB/ SS 304 / SS 316
BONNET :
STANDARD & EXTENDED
TEMP. :
-20° C TO 220° C
TRIM DESIGN :
CONTOURED PARABOLIC / CAGE GUIDED/ PRESSURE BALANCED
CHARACTERISTIC :
LINEAR/ EQUAL PERCENTAGE / ON-OFF
END CONNECTION :
FLANGED TO ANSI V16.5
15# / 300# / 600#
|
 |
Control Valve(upto 550° C) for
Thermic Fluid Electrical
Actuator Operated |
SIZE :
1/2" TO 4"
Type:
2 Way / 3 Way
moc :
CI/ WCB/ SS 304 / SS 316
BONNET :
STANDARD & EXTENDED WITH
FINNED PATTERN
TEMP. :
-20° C TO 450° C (AS PER REQUIREMENT)
TRIM DESIGN :
CONTOURED PARABOLIC / CAGE GUIDED/ PRESSURE BALANCED
CHARACTERISTIC :
LINEAR/ EQUAL PERCENTAGE / ON-OFF
END CONNECTION :
FLANGED TO ANSI B16.5
150# / 300# / 600# |
