ISO Pneumatic Cylinder

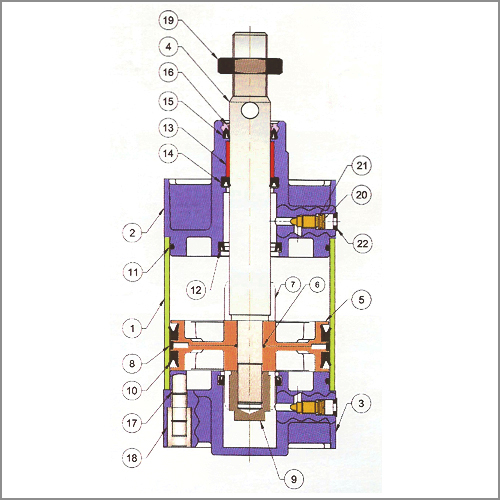

FEATURES

  • Hard Anodized Aluminum Profile (round) type cylinder barrel.
  • Bore Size ∅ 32 to 250 mm.
  • Adjustable cushioning at both ends with elastomer pads.
  • Magnetic and Non-Magnetic cylinder
  • Wide range of mountings as per VDMA 24562 standards.
  • Magnetic sensor common for all sizes.
  • Modern design and consistent engineering.
  • Double slots on 3 sides of cylinder position sensors.
  • An extensive range of mounting accessories make it possible to install the solution virtually anywhere
  • Allen screws with internal thread for mounting components.
  • Additional cushioning rings in the end-positions for absorbing residual energy from high speeds and fast machine cycles.



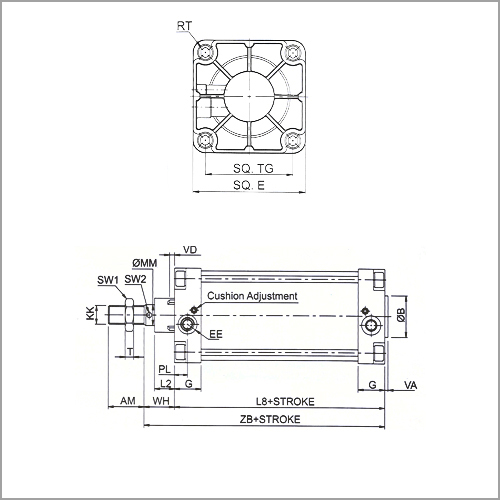

TECHNICAL SPECIFICATIONS

Bore dia (mm) 32 40 50 63 80 100 125 , 160,  200,  250
Cushion stroke (mm) 21 23 23 23 28 28 40 ,   40   40   50
Standard strokes * (mm) 25, 40, 50, 80, 100, 125, 160, 200, 250, 300, 350, 400, 450, 500
Medium Compressed air - filtered - lubricated
Working pressure 0.5 - 10 bar
Medium temperature 5° ~ 60° C max.
Materials of construction Aluminium, Brass, Nitrile, Steel, Acetal, Polyurethane
Mountings & Accessories Male clevis Female clevis, Clevies fot bracket, Rod end fork, Foot mounting, Front trunnion, Wall mounting bracket, Rod end aligner, Front Flange, Rear trunnion Trunnion bracket, Rod end spherical eye Rear flange, Adjustabe Center Trunnion Mounting,

For Non standard or longer stroke Cylinders, available on request.
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
