Accessories For 'RVB' Series

Technical Specifications

Body Steel Chrome Plated/ Brass/ S.S. 304/ S. S. 316
Seals Nitrile
Media Compressed Air
Temperature Upto 85 ° C (Upto 250 ° C Available on Request)
Leakage Bubble Tight
Type Double Check
Ports Female to Female
Pressure Refer to Technical data

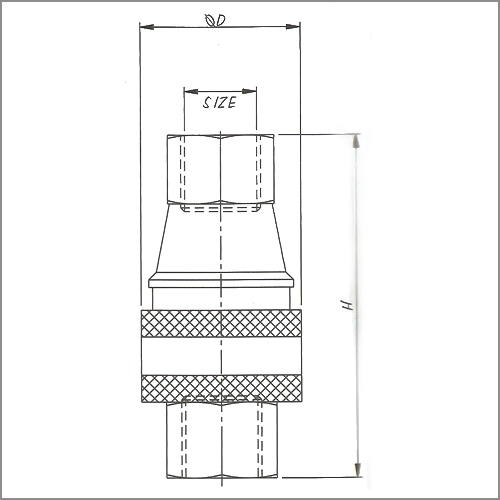

Dimensions :

MODEL SIZE(BSP) H ∅D Press.PSI Weight
RVB - D - 4 1/8" 59 22 4000 0.075
RVB - D - 6 1/4" 72 28 4000 0.154
RVB - D - 10 3/8" 82 35 4000 0.255
RVB - D - 15 1/2" 93 45 3500 0.447
RVB - D - 20 3/4" 98 55 3000 0.533
RVB - D - 25 1" 114 65 2500 0.973
RVB - D - 32 1.1/4" 139 79 2500 2.180
RVB - D - 40 1.1/2" 120 89 2000 2.000
RVB - D - 50 2" 140 109 1500 2.850

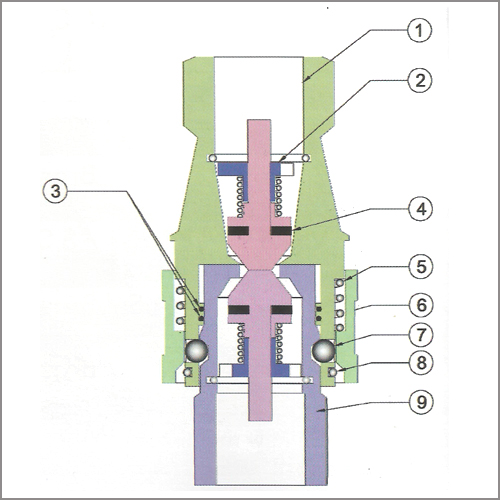

Material Of Construction

No. Part Name Material
1 Socket / Body M. S / Brass / S. S 304 / 316
2 Lock S . S.
3 'O' Ring NBR
4 Seals NBR
5 Spring S.S
6 Sleeve M. S / Brass / S. S.
7 Ball S. S
8 Lock Washer S. S
9 Plug / Connector M.S / Brass / S.S
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
