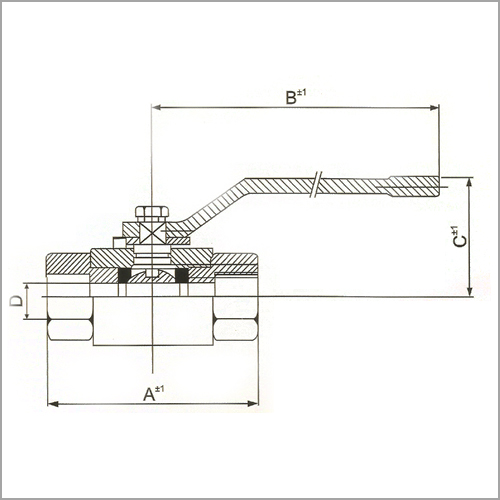

High Pressure 2 Way Ball Valve

Size Range : 1/4" to 2"

TECHNICAL SPECIFICATIONS

Body & Adaptor Forged C.S. / S. S. 304 / S.S. 316
Ball S.S. 304 / S.S. 316
Stem S.S. 304 / S.S. 316
'O' Ring Viton
Washer Imported Plastic
Stopper Pin S.S. 304
Washer Spring Steel
Bolt C.S. / S.S.
Handel & Stoper Plate CS Powder Coated
Pressure As per Table
Temperature 80 ° C (High Temperature available on request)
Media Air, Water, Oil & Gas

FEATURES

  • Full bore valves provide an unrestricted flow path for negligible pressure drop.
  • Floating ball on pre-compressed seals minimises wear and provides an excellent seal at
    positive and negative pressure.
  • Operating temperature from -20°C to 85°C
  • Open to close in 1/4 turn (90°)

STAINLESS STEEL VALVES

  • Body and ball in 316 Stainless Steel for use in the Food, Chemical and Pharmaceutical Industries. A varety of special seals can be provided to comply with the stringent sepecifications required by these applications.
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
