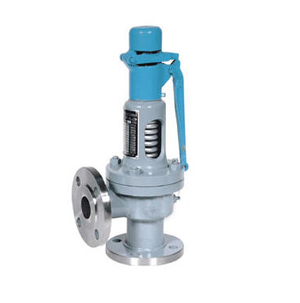

Safety Valve Spring Loaded
TECHNICAL DATA
- Manufacturing STD. : BS 1873.
- Testing & Inspection STD. : API 598.
- Face To Face : ANSI B 16.10.
- End Connections : Flanged As Per ANSI B 16.5.
- Shell Wall Thickness : ANSI B 16.34.
|
| 01 |
BODY |
C.I. / C.S. / S.S. 304 / S.S. 316 |
1 |
| 02 |
COVER |
C.I. / C.S. / S.S. 304 / S.S. 316 |
1 |
| 03 |
SEAT RING |
AISI 304 |
1 |
| AISI 316, 13% CR. S.S. |
| 04 |
DISC |
AISI 304 |
1 |
| AISI 316, 13% CR. S.S. |
| 05 |
GLAND |
C.I. / C.S. / S.S. 304 / S.S. 316 |
1 |
| 06 |
GLAND PACKING |
METALIC WIRE REINFORCED |
- |
| GRAPHITED ASBESTOS |
| 07 |
SPRING WASHER |
C.I. / C.S. / S.S. 304 / AISI 410 |
2 |
| 08 |
SPRING |
CARBON STEEL / ALLOY STEEL |
1 |
| 09 |
STUD & NUT |
CARBON STEEL |
2 SET |
| 10 |
GASKET |
COMPRESSED ASBESTOS |
1 |
| FIBRE / SOFT STEEL |
| 11 |
BODY STUD & NUT |
ASTM A 193 GR. B7 |
1 |
| ASTM A 194 GR. 2H |
| 12 |
FLAT |
CARBON STEEL / |
1 |
| S.S. 304 / S.S. 316 |
| 13 |
ADJUST NUT |
CARBON STEEL / |
1 |
| S.S. 304 / S.S. 316 |
| 14 |
ADJUST BOLT |
CARBON STEEL/ |
1 |
| S.S. 304/ S.S. 316 |
DIMENSION
|
|
|
|
|
|
|
|
|
|
|
| 1" |
25 |
127 |
11.0 |
51 |
108.0 |
16 |
4 |
79.2 |
| 1.1/2" |
40 |
165 |
14.2 |
73 |
127.0 |
16 |
4 |
98.5 |
| 2" |
50 |
203 |
15.7 |
92 |
152.0 |
19 |
4 |
120.6 |
| 2.1/2" |
65 |
216 |
17.5 |
105 |
178.0 |
19 |
4 |
140.0 |
| 3" |
80 |
241 |
19.0 |
127 |
190.5 |
19 |
8 |
190.5 |
| 4" |
100 |
292 |
24.0 |
157 |
229.0 |
19 |
8 |
215.9 |
| 5" |
125 |
356 |
24.0 |
186 |
254.0 |
22 |
8 |
215.9 |
| 6" |
150 |
406 |
25.0 |
186 |
254.0 |
22 |
8 |
241.3 |
| 8" |
200 |
495 |
28.5 |
270 |
343.0 |
22 |
8" |
298.4 |
|
