Globe Valve Flanged End

TECHNICAL DATA

  • Manufacturing STD. : BS1873.
  • Testing & Inspection STD. : API 598.
  • Face To Face : ANSI B 16.10.
  • End Connections : Flanged as per ANSI B 16.5.
  • Shell Wall Thickness : ANSI B 16.34.

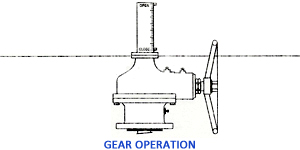

 Globe Valve Flanged End
Globe Valve Flanged End
Globe Valve Flanged End

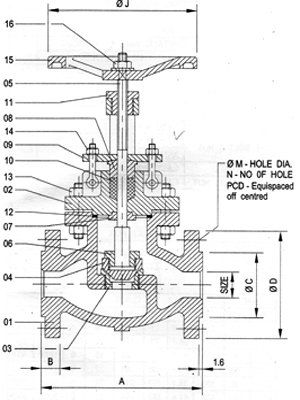

NO. DESCRIPTION MATERIAL QTY.
01 BODY ASTM A 216 GR. WCB/WC6/CF8/CF8M 1
02 BONNET ASTM A 216 GR. WCB 1
03 SEAT RING AISI 304/AISI 316/13% CR. S.S. 1
04 DISC AISI 304/AISI 316/13% CR. S.S 1
05 STEM AISI 304/AISI 316/13% CR. S.S 1
06 DISC NUT AISI 304/AISI 316/13% CR. S.S 1
07 BACK SEAT BUSH AISI 410/304/316 1
08 GLAND BUSH AISI 410/304/316 1
09 GLAND FLANGE CARBON STEEL 1
10 GLAND PACKING METALLIC WIRE REINFORCED -
GRAPHITED ASBESTOS
11 YOKE SLEEVE AL. BRONZE / NI - RESIST 1
12 BONNET GASKET COMPRESSED ASBESTOS 1
FIBRE / SOFT STEEL
13 BONNET STUD & NUT ASTM A 193 Gr. B7 -
ASTM A 194 Gr. 2H
14 EYE BOLT & NUT ASTM A 193 Gr. B7 2 SET
ASTM A 194 Gr. 2H
15 HAND WHEEL CAST IRON 1
16 HAND WHEEL NUT CARBON STEEL 1
PRIMARY SERVICE RATING & TEST PRESSURE
CLASS WORKING PRESS. TEMP. HYD. TEST PRESS.
  BODY SEAT
150 150 PSIG 500°F 425 PSIG 300 PSIG
AIR TEST - SEAT 80 PSIG ±10 PSIG



DIMENSION

VALVE SIZE in mm 2 2.5 3 4 5 6 8 10 12 14 16 18 20 22 24
50 65 80 100 125 150 200 250 300 350 400 450 500 550 600
L 8.0 8.5 9.5 11.5 14.0 16.0 19.5 24.5 27.5 31.0 36.0 38.5 38.5 42.0 51.0
203 216 241 292 356 406 495 622 698 787 914 978 978 1067 1295
L1 8.0 8.5 9.5 11.5 14.0 16.0 19.5 24.5 27.5 31.0 36.0 38.5 38.5 42.0 51.0
203 216 241 292 356 406 495 622 698 787 914 978 978 1067 1295
'H' aap 320 330 380 480 525 575 650 780 935 1185 1250 1350 1410 1525 1650
QK aap 200 200 250 300 300 350 450 500 600 700 750 800 800 850 900
Wt. Kg app (F/E) 20 30 38 57 75 98 155 225 360 580 800 910 1100 1300 1450
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
