Gate Valve Flanged Ends

TECHNICAL DATA

  • Manufacturing STD. : API 600.
  • Testing & Inspection STD. : API 598.
  • Face To Face : As Per ANSI B 16.10.
  • Shell Wall Thickness : ANSI B 16.34.
  • End Connections : Flanged As Per ANSI B 16.5
 Globe Valve Flanged End
Gate Valve Flanged Ends
Gate Valve Flanged Ends

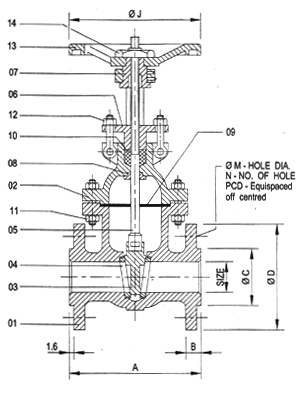

NO. DESCRIPTION MATERIAL QTY.
01 BODY ASTM A 216 GR. WCB/WC6/CF8/CF8M 1
02 BONNET ASTM A 216 GR. WCB 1
03 WEDGE AISI 304/AISI 316/13% CR. S.S. 1
04 SEAT RING AISI 304/AISI 316/13% CR. S.S 1
05 STEM AISI 304/AISI 316/13% CR. S.S 1
06 GLAND CARBON STEEL 1
07 YOKE SLEEVE AL. BRONZE/ NI-RESIST 1
08 BACK SEAT BUSH AISI 410 1
09 GASKET SPIRAL WOUND METALIC 1
GASKET
10 GLAND PACKING METALIC WIRE REINFORCED -
GRAPHITED ASBESTOS
11 BONNET STUD & NUT ASTM A 193 Gr. B7 -
ASTM A 194 Gr. 2H
12 EYE BOLT & NUT ASTM A 193 Gr. B7 2 SET
ASTM A 194 Gr. 2H
13 HAND WHEEL C.I. / C.S. 1
14 HAND WHEEL NUT CARBON STEEL 1

DIMENSION

SIZE CLASS - 150
IN M.M A B C ∅D ∅M N PCD ∅J
1" 25 127.0 11.0 51 108.0 16 4 79.2 123
1.1/2" 40 165.1 14.2 73 127.0 16 4 98.5 152
2" 50 177.8 15.7 92 152.0 19 4 120.6 203
2.1/2" 65 190.5 17.5 105 178.0 19 4 139.7 203
3" 80 203.2 19.0 127 190.5 19 4 152.4 254
4" 100 228.6 24.0 157 229.0 19 8 190.5 305
5" 125 254.0 24.0 186 254.0 22 8 215.9 305
6" 150 266.7 25.0 216 279.0 22 8 241.3 356
8" 200 292.1 28.5 270 343.0 22 8 298.4 356
10" 250 330.2 30.0 324 406.0 25 12 262.0 406
12" 300 355.6 32.0 381 483.0 25 12 431.8 457
14" 350 381.0 35.0 413 534.0 28 12 476.2 508
16" 400 406.4 36.5 470 597.0 28 16 539.7 508
SIZE CLASS - 300
IN M.M A B C ∅D ∅M N PCD ∅J
1.1/2" 40 190.5 20.5 73 155.4 22 4 144.3 152
2" 50 215.9 22.0 92 165.0 19 8 127.0 203
2.1/2" 65 241.3 25.0 105 190.5 22 8 149.3 203
3" 80 282.5 28.5 127 209.5 22 8 186.1 254
4" 100 304.8 32.0 157 254.0 22 8 200.1 305
5" 125 381.0 35.0 186 279.4 22 8 234.9 356
6" 150 403.2 36.5 216 317.5 22 12 269.7 356
8" 200 419.1 41.0 270 381.0 25 12 330.2 406
10" 250 457.2 48.0 324 444.5 29 16 387.3 457
12" 300 501.6 51.0 381 520.7 32 16 450.8 508
14" 350 762.0 54.0 413 584.2 32 20 514.3 508
16" 400 838.2 57.0 470 647.7 35 20 571.5 508
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
