Gate Valve Butt Weld End

TECHNICAL DATA

  • Manufacturing STD. : API 600.
  • Testing & Inspection STD. : API 598.
  • Face To Face : ANSI B 16.10.
  • Shell Wall Thickness : ANSI B 16.34.
  • Butt Weld Ends : ANSI B 16.25.
 Globe Valve Flanged End
Gate Valve Butt Weld End
Gate Valve Butt Weld End

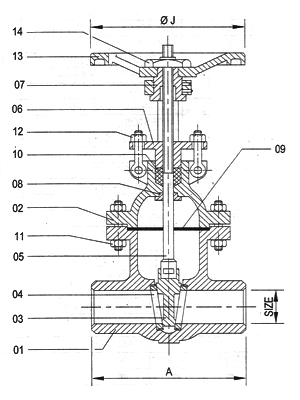

NO. DESCRIPTION MATERIAL QTY.
01 BODY ASTM A 216 GR. WCB/WC6/CF8/CF8M 1
02 BONNET ASTM A 216 GR. WCB 1
03 WEDGE AISI 304/AISI 316/13% CR. S.S. 1
04 SEAT RING AISI 304/AISI 316/13% CR. S.S 2
05 STEM AISI 304/AISI 316/13% CR. S.S 1
06 GLAND CARBON STEEL 1
07 YOKE SLEEVE AL. BRONZE/ NI-RESIST 1
08 BACK SEAT BUSH AISI 410 1
09 GASKET SPIRAL WOUND METALIC 1
GASKET
10 GLAND PACKING METALIC WIRE REINFORCED -
GRAPHITED ASBESTOS
11 BONNET STUD & NUT ASTM A 193 GR. B7 -
ASTM A 194 GR. 2H
12 EYE BOLT & NUT ASTM A 193 GR. B7 2 SET
ASTM A 194 GR. 2H
13 HAND WHEEL C.I. / C.S. 1
14 HAND WHEEL NUT CARBON STEEL 1
PRIMARY SERVICE RATING & TEST PRESSURE
CLASS WORKING PRESS. TEMP. HYD. TEST PRESS.
  BODY SEAT
150 150 PSIG 500°F 425 PSIG 300 PSIG
300 300 PSIG 800°F 1100 PSIG 800 PSIG
400 400 PSIG 800°F 1450 PSIG 1060PSIG
600 600 PSIG 800°F 2175 PSIG 1600PSIG
AIR TEST - SEAT 80 PSIG ±10 PSIG

DIMENSION

CLASS - 150
SIZE A ∅J
IN M.M
1" 25 127 123
1.1/2" 40 165.1 152
2" 50 177.8 203
2.1/2" 65 190.5 203
3" 80 203.2 254
4" 100 228.6 305
5" 125 254.0 305
6" 150 266.7 356
8" 200 292.1 356
10" 250 330.2 406
12" 300 355.6 457
14" 350 381.0 508
16" 400 406.0 508
CLASS - 300
SIZE A ∅J
IN M.M
1.1/2" 40 190.5 152
2" 50 216.9 203
2.1/2" 65 241.3 203
3" 80 282.5 254
4" 100 304.8 305
5" 125 381.0 356
6" 150 403.2 356
8" 200 419.1 406
10" 250 457.2 457
12" 300 501.6 508
14" 350 762.0 508
16" 400 838.2 508
CLASS - 600
SIZE A ∅J
IN M.M
1.1/2" 40 241.3 250
2" 50 292.1 250
2.1/2" 65 330.2 405
3" 80 355.6 405
4" 100 431.8 490
5" 125 508.0 490
6" 150 558.8 610
8" 200 660.4 675
10" 250 787.4 825
12" 300 838.2 825
14" 350 889.0 825
16" 400 990.6 1000
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
