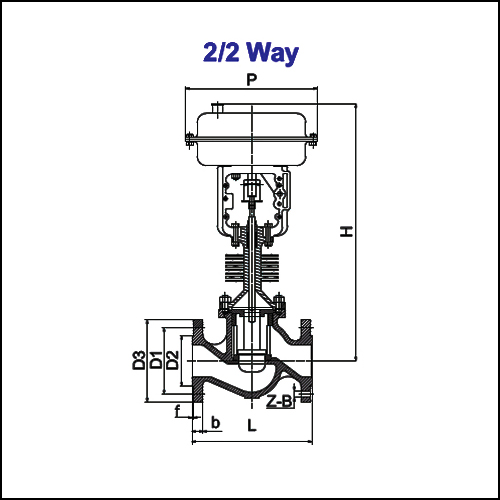

Pneunatic Diaphragm Operated 2 Way Control Valve

Size Range : 1/2" to 12" Flanged

DIAPHRAGM - TECHNICAL SPECIFICATIONS

ACTUATOR : Diaphragm & Multi Spring type, Air to Open / Air to Close
as a standard (Piston actuators / Electrical actuator on request)
PNEUMATIC PRESSURE : 1.44 to 2.44 Kg/cm2


TECHNICAL SPECIFICATIONS

BODY & BONNET : ASTM 216 Gr. WCB / ASTM A351 Gr. CF8 / CF8M
INTERNALS : S.S. 304 / 316 [Hard facing when required Other
material On Request]
GLAND PACKINGS : Teflon / Grafoil
TRIM DESIGN : Contoured parabolic / Cage guided / Pressure
balanced
CHARACTERISTIC : Linear / Equal percentage / ON - OFF (Quick opening)
END CONNECTIONS : Flanged end ANSI B16.5 CL 150 [300 / 600
available On Request]
PRESSURE RATINGS : ANSI B16.5 CL 150 / 300 / 600
LEAKAGE : ANSI B16.104 CL V & VI for metal to metal seating.
(Class V & Class-VI leak tightness with soft seating
On Request)

ACCESSORIES

  • 3/2 Way Solenoid Valve in all Standard Coil Voltage
  • I/P Transducer (Convertor)
  • Pneumatic valve positioner
  • Electro-Pneumatic valve positioner
  • Manual Over - ride (Clutch Type)
  • Limit Switch for On / Off Indication at Panel board
  • Filter + Regulator Combination with Pressure Gauge
  • Air Lock Valve

SALIENT FEATURE

  • Precise Regulating with High flow capacity
  • Large type of trim Top Operating designs for various duty conditions
  • In line Repairable Design for easy maintenance
  • Tight closure even in extreme operating conditions
  • Multi action type Actuator (Direct / Reverse acting)
  • Wide Range of actuators to meet different application
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
