3 Way Pneumatic Control Valve

TECHNICAL DATA

  • Testing & Inspection STD. : ANSI B 16.37/ API 598.
  • Seal Leakage STD. : FCI -70-2/ ISA - RP - 39.6.
  • End Connections : ANSI B 16.5.
3 Way Pneumatic Control Valve
3 Way Pneumatic Control Valve

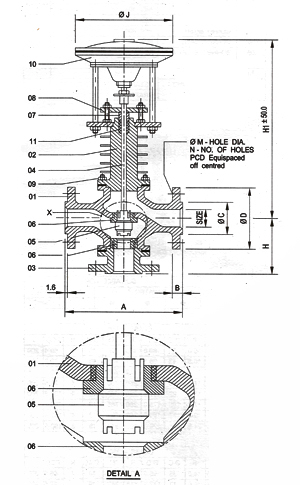

NO. DESCRIPTION MATERIAL QTY.
01 BODY ASTM A 216 GR. WCB/WC6/CF8/CF8M 1
02 BONNET ASTM A 216 GR. WCB 1
03 BONNET FLANGE ASTM A 216 GR. WCB 1
04 STEM AISI 304 1
05 PLUG AISI 304 1
06 SEAT RING AISI 304 2
07 GLAND BUSH AISI 304 1
08 GLAND PLATE M.S. 1
09 BONNET STUD & NUT ASTM A 193 GR. B7 -
ASTM A 194 GR. 2H
10 ACTUATOR ALUMINIUM 1
11 GLAND PACKING METALIC WIRE REINFORCED -
GRAPHITED ASBESTOS
PRIMARY SERVICE RATING & TEST PRESSURE
CLASS WORKING PRESS. TEMP. HYD. TEST PRESS.
  BODY SEAT
150 150 PSIG 500°F 425 PSIG 300 PSIG
300 300 PSIG 800°F 1100 PSIG 800 PSIG
AIR TEST - SEAT 80 PSIG ±10 PSIG
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
