3 Way Motorised Control Valve
TECHNICAL DATA
- Testing & Inspection STD. : ANSI B 16.37/ API 598.
- Seal Leakage STD. : FCI -70-2/ ISA - RP - 39.6.
- End Connections : ANSI B 16.5.
|
|

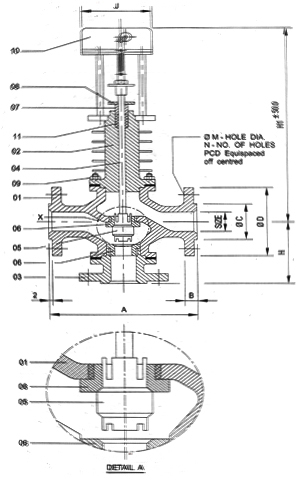

| 01 |
BODY |
ASTM A 216 GR. WCB/WC6/CF8/CF8M |
1 |
| 02 |
BONNET |
ASTM A 216 GR. WCB |
1 |
| 03 |
BONNET FLANGE |
ASTM A 216 GR. WCB |
1 |
| 04 |
STEM |
AISI 304 |
1 |
| 05 |
PLUG |
AISI 304 |
1 |
| 06 |
SEAT RING |
AISI 304 |
2 |
| 07 |
GLAND BUSH |
AISI 304 |
1 |
| 08 |
GLAND PLATE |
M.S. |
1 |
| 09 |
BONNET STUD & NUT |
ASTM A 193 GR. B7 |
- |
| ASTM A 194 GR. 2H |
| 10 |
ACTUATOR |
ALUMINIUM |
1 |
| 11 |
GLAND PACKING |
METALIC WIRE REINFORCED |
- |
| GRAPHITED ASBESTOS |
| PRIMARY SERVICE RATING & TEST PRESSURE |
| CLASS |
WORKING PRESS. |
TEMP. |
HYD. TEST PRESS. |
| |
BODY |
SEAT |
| 150 |
150 PSIG |
500°F |
425 PSIG |
300 PSIG |
| 300 |
300 PSIG |
800°F |
1100 PSIG |
800 PSIG |
| AIR TEST - SEAT 80 PSIG ±10 PSIG |
